Live Monitoring and logging of Temperature and Humidity
in a facility complex.

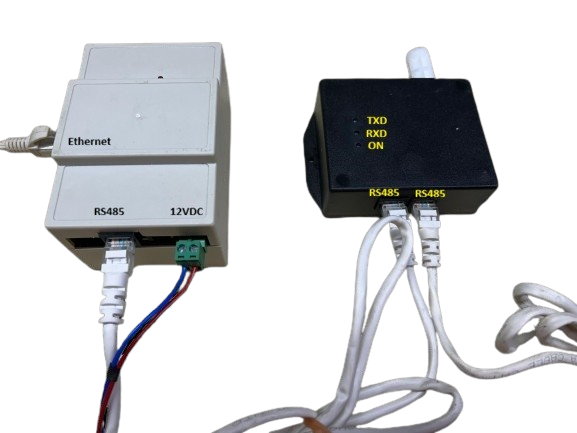

The system consists of multiple Temperature/ Humidity sensors connected via RJ45 cable – RS485 with POE(12V DC) can be placed different rooms or locations in the premises/ racks in case of data centers. The Cat 5/6 wiring makes it easy to connect the devices without any additional power source and at long distances.
The Gateway device connects to Ethernet (100/10 MHz) either to a router or a PC.
Each one of the Temperature/ Humidity Sensor has a fixed ID Number ( Modbus ID) and the connected Sensors IDs shall be entered in the Gateway Setting. The basic Gateway supports up to 30 Sensors. The Windows applications shows a dashboard of the sensor readings on-line as well logs the data automatically. You can take periodical reports as well delete past data from the storage.
The Windows application works on LAN environment or Stand alone PC mode without any need for Internet connectivity or Server Software.
Application:
1. Offices/ Factories
2. Data Centers/ Server Room

1. Temperature Sensor +/- 0.3 ° C (-40 to 85° C)
2. Humidity +/- 2 %RH (0 to 100% RH)

Optional:
1. The system can be supplied with Air quality Particle size sensors (PM2.5 and PM10), Atmospheric pressure and other gases.
2. The Communication of the Gateway device can be supplied with WIFI (2.4 GHz) instead of Ethernet.
3. Auto activation of equipment (with Relays) on Set Temperature/ Humidity
